Release Subtitle:
Researchers demonstrate polarization-controlled metal and dielectric resonances in a single MoOCl₂ nanostructure for multifunctional nanophotonics
Release Summary Text:
Metal and dielectric nanostructures have traditionally offered different optical advantages, but combining both functions usually requires complex hybrid designs. Now, researchers demonstrate that a single MoOCl₂ nanostructure can independently support metallic and dielectric resonance modes controlled by orthogonal light polarizations. The two nonhybrid modes coexist without crosstalk, enabling precise light manipulation and opening new opportunities for compact photonic devices, optical communication, sensing, and multifunctional metasurfaces for future integrated photonic technologies and devices.
Full text of release:
Metallic nanostructures are exceptionally effective at concentrating light into tiny volumes, while dielectric nanostructures excel at storing light with minimal energy loss. Combining these complementary properties has traditionally required complicated hybrid structures in which the two optical modes become mixed, making them difficult to control independently. Achieving both resonance types within a single nanostructure without mode interference has therefore remained a major challenge in nanophotonics, limiting the development of compact, multifunctional optical devices.
Addressing this challenge, a research team led by Special Appointment Professor Hiroaki Misawa from the Research Institute for Interdisciplinary Science, Advanced Research Field, Okayama University, Japan, along with Professor Qihuang Gong and Dr. Yaolong Li from Hokkaido University, Japan, and Peking University, China, and Dr. Xu Shi and Professor Yasutaka Matsuo from Hokkaido University, Japan, developed nanostructures using the naturally hyperbolic two-dimensional material MoOCl₂. Unlike conventional materials, MoOCl₂ behaves as a metal along one crystal direction and as a dielectric along the perpendicular direction, allowing two fundamentally different resonance modes to coexist within a single nanostructure. The study was first published online on June 20, 2026, and appeared in Volume 20, Issue 26 of ACS Nano on July 7, 2026.

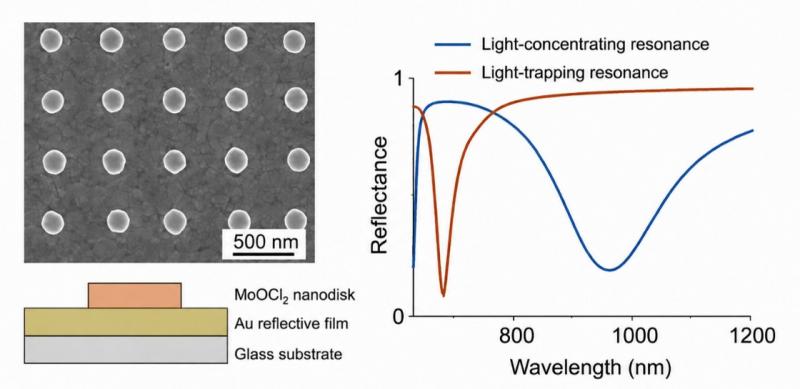

The researchers fabricated arrays of MoOCl₂ nanodisks on a gold reflective film and investigated their optical behavior using spectroscopy, finite-difference time-domain simulations, and photoemission electron microscopy. The gold film acts as a mirror that enhances confinement of the dielectric mode while preserving the plasmonic mode. Their analysis revealed that x-polarized light excites a localized plasmon resonance along the material's metallic axis, whereas y-polarized light selectively excites a dielectric magnetic dipole resonance along the orthogonal dielectric axis. Because these modes originate from different crystal directions, they remain nonhybrid and can be independently controlled without mode mixing or crosstalk.
The two resonances also displayed strikingly different optical characteristics. The dielectric resonance exhibited a much higher quality factor, reaching 45.3 in experiments, approximately 5.7 times greater than that of the plasmonic resonance. By adjusting the nanostructure geometry, the researchers successfully tuned both resonances to overlap at the same wavelength while preserving independent polarization control. Photoemission electron microscopy further revealed that the dielectric resonance produced a nearly 300-fold stronger photoemission signal than the plasmonic mode, reflecting the different hotspot locations of the two resonances within the nanostructure.
“We wanted to independently control the light-concentrating function of metallic nanostructures and the light-trapping function of dielectric nanostructures within a single structure,” explains Prof. Misawa. “MoOCl₂ offered this unique opportunity because its optical response changes with crystal direction, allowing two completely different resonance modes to coexist without interfering with each other.”
The ability to switch between two independent resonances simply by rotating the polarization of incident light could simplify the design of highly integrated optical components. The researchers envision applications in highly sensitive optical and chemical sensors, ultra-compact optical switches, optical communication systems, optical information processing, nonlinear optical devices, and multifunctional metasurfaces capable of controlling light reflection, polarization, and propagation with unprecedented flexibility.
“This work provides a new design strategy for multifunctional nanophotonic devices using a single nanostructure instead of complicated hybrid systems,” Prof. Misawa adds. “Such simplified architectures could support future photonic technologies that require precise, polarization-selective control of light.”
Overall, the discovery that a single MoOCl₂ nanostructure can independently host metallic and dielectric resonance modes establishes a new platform for nanophotonic engineering. By exploiting the material's intrinsic metal-dielectric duality rather than combining different materials, the approach enables compact optical components with independently addressable functionalities, offering promising opportunities for next-generation sensing, optical communication, nonlinear photonics, and multifunctional metasurface technologies.
Media Coverage
▸Science Japan — Okayama University and Hokkaido University combine two light functions in one nanodevice
https://sj.jst.go.jp/news/202608/n0824-01k.html
Reference:
▸Title of original paper: Coexistence of Metal and Dielectric Resonance Modes in a Single Nanostructure of a Hyperbolic Material
▸Journal: ACS Nano
▸DOI: 10.1021/acsnano.6c06696
