Release Subtitle:
Researchers show that garnet governs the mineral transitions shaping Earth's 660-km seismic boundary, supporting a pyrolite-like mantle

Release Summary Text:
Earth’s 660-km seismic discontinuity has long been attributed to ringwoodite breakdown, but this alone cannot explain complex seismic observations. Now, researchers have shown that the boundary forms through a coupled post-spinel transition involving majorite garnet, the mantle’s second most abundant mineral. This mechanism consistently explains seismic structure beneath subduction zones and mantle plumes and supports a compositionally homogeneous, pyrolite-like mantle, providing new insights into Earth’s deep interior and mantle dynamics.

Full text of release:
Nearly 660 kilometers beneath Earth's surface lies one of the planet's most important internal boundaries. Known as the 660-km seismic discontinuity, it separates the mantle transition zone from the lower mantle and plays a central role in controlling how heat and materials circulate through Earth's interior. This circulation helps drive mantle convection, plate tectonics, volcanic activity, and the long-term evolution of the planet. Although scientists have generally attributed this boundary to the breakdown of the mineral ringwoodite into bridgmanite and ferropericlase, that explanation has struggled to account for the complex structures detected by seismic observations beneath subduction zones and mantle plumes.

Addressing this challenge, a research team led by Associate Professor Takayuki Ishii at the Institute for Planetary Materials, Okayama University, along with Professor Hiroshi Kojitani and Professor Masaki Akaogi from the Department of Chemistry, Gakushuin University, Japan, investigated how majorite garnet, the second most abundant mineral in the mantle transition zone, influences this transformation. Using high-pressure, high-temperature experiments in a Kawai-type multi-anvil apparatus, they compared garnet-free and garnet-bearing mantle compositions under identical conditions. Their experiments revealed that the post-spinel transition does not occur independently in realistic mantle compositions but instead proceeds as a coupled reaction linked to the post-garnet transition. Their findings were published in Nature Communications on May 25, 2026.

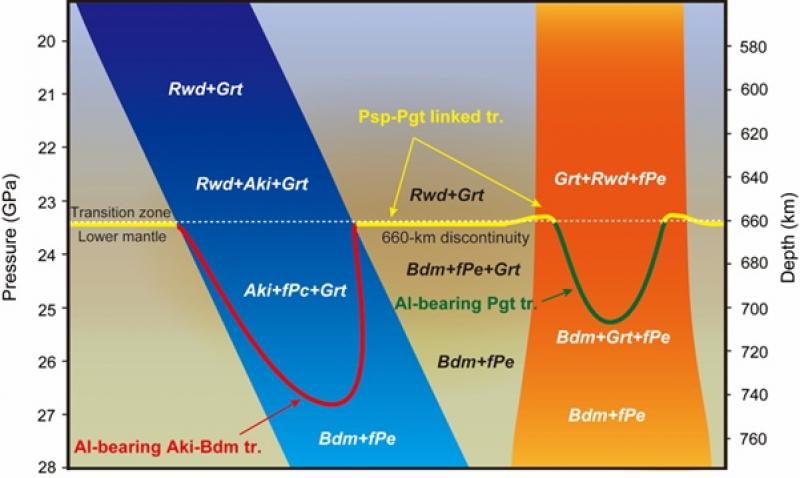

The experiments showed that aluminum-bearing garnet changes both the pressure and temperature dependence of the post-spinel transition. Instead of behaving as an isolated mineral transformation, bridgmanite formation is governed by coupled mineral transitions involving ringwoodite breakdown and garnet. This coupled mechanism consistently explains why the average 660-km discontinuity forms at the observed depth, while also accounting for its roughness beneath cold subduction zones and hot mantle plumes. The findings indicate that garnet is not merely a passive component of the mantle but a key control on the mineral reactions responsible for this major seismic boundary.

“Our study shows that the 660-km boundary is created by a coupled post-spinel transition involving garnet rather than by the decomposition of ringwoodite alone,” says Dr. Ishii. “This mechanism provides a unified explanation for a wide range of seismic observations that previous models could not fully reconcile.”

The researchers further found that the linked mineral transformations support a mantle with a relatively homogeneous, pyrolite-like composition instead of a mechanical mixture of different rock types. This revised understanding provides a stronger framework for interpreting seismic images of Earth's deep interior and improves models of how material and heat move through the mantle.

A more accurate understanding of how the 660-km discontinuity forms also has broader implications for Earth science. By clarifying the mineral reactions that shape this boundary, the study provides a firmer basis for interpreting mantle convection, slab penetration into the lower mantle, and the ascent of hot mantle plumes. These processes govern the transport of heat and material within Earth and ultimately influence the tectonic and volcanic activity observed at the surface. The findings may also prompt a re-evaluation of prevailing models of mantle composition and Earth's long-term evolution.

“Our work began with a question that remained unanswered from my first research project as a student—why the decomposition reaction of ringwoodite changes when garnet is present,” explains Dr. Ishii. “Resolving that question has now revealed a more realistic picture of Earth's deep interior and how the mantle behaves.”

Overall, the study identifies garnet as the key mineral governing the formation of Earth's 660-km seismic boundary, offering a comprehensive explanation for its complex seismic structure while reinforcing the view that the mantle is compositionally homogeneous with a pyrolite-like bulk composition.


Reference:
▸Title of original paper: Role of garnet shaping the 660-km seismic discontinuity
▸Journal: Nature Communications
▸DOI: 10.1038/s41467-026-73717-6

Contact information

Contact Person: About Associate Professor Takayuki Ishii from Okayama University, Japan

Dr. Takayuki Ishii is an Associate Professor at the Institute for Planetary Materials, Okayama University, Tottori, Japan. He earned his M.S. in Science in 2012 and Ph.D. in Science in 2015 from Gakushuin University. His research focuses on high-pressure phase transitions, Kawai-type multi-anvil high-pressure apparatus, high-pressure and high-temperature phase relations, crystal chemistry, Earth's mantle, and experimental mineral physics, with expertise in natural science and biogeosciences. In April 2026, he received the Commendation for Science and Technology: Young Scientists' Award from Japan's Ministry of Education, Culture, Sports, Science and Technology (MEXT). He has authored 95 peer-reviewed scientific publications.
